One for all! "One-shop stop"!

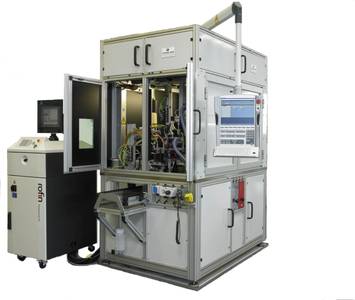

ProMoScript® Compact combines all processes from handling to cleaning and suctioning and finally to aligning, marking and testing of rotation-symmetrically parts at large quantities on the enveloping and front surface with human-readable text, bar code or data matrix code. This compact system is space-saving in production, works of course in compliance with the cycle of preceding and following working steps and is 100% reliable.

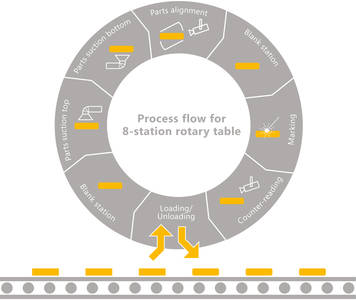

Individual solutions often are uneconomical, standard solutions are favourable, but not 100% customized. ProMoScript® is our way of overcoming this dilemma. Besides the 8-station rotary table machine, our manual workplace ProMoScript Basic® is appropriate for simple applications and smaller quantities.
The concept of our machines and equipment is defined by both your product-dependent specifications and the focus on maximized standardization. In any other case we will gladly discuss with you your individual special solution. Here you may contact our Inside Sales Service.
Equipment dimensions 1.7 m x 1.2 m x 2.4 m
Voltage supply 230/400 V
Nominal current consumption 10 A
Control voltage 24 V
Weight 2,300 kg
Compressed-air supply 5 bar
Laser Rofin Sinar M 100 D with 2 galvo heads and beam switch
Image processing system "DMC countercheck" Cognex Insight 5110
Image processing system "Component alignment" Cognex Insight 5100
Space-saving rotary transfer machine for cleaning, marking and testing of components
Simultaneous marking of 2 components

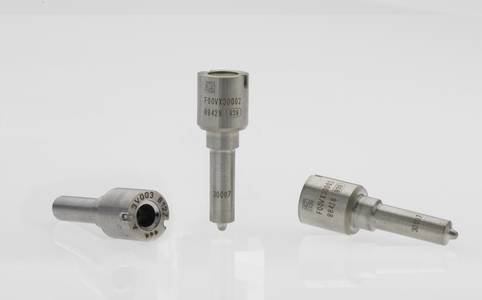

Designed for rotation-symmetrically parts at large quantities
Marking of front and enveloping surface (360°)
Machine cell of aluminium sections
Tolerance of marking in rotational position ±1°
Positioning accuracy of the marking ±0.05 mm
Position recognition and orientation by camera system resp. actuators
Variable marking for similar component geometries
Different marking layouts maintained in the control system
Type recognition on blister by bar code
Inline (connection to central computer) or stand-alone
