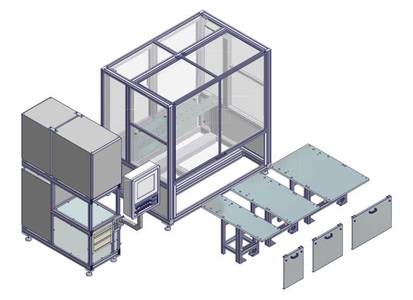

The modular assembly system ProMoCell® is designed as universal modular system by means of which single stations as well as complex automated and semi-automated assembly and testing facilities can be built. The central base unit is a locating module to which a switch cabinet module with control panel will be connected. The locating module is flexible and thus adaptable to the size of the products to be handled. The specific assembly and testing processes are carried out on process modules. The size of these modules will be dimensioned in accordance with the requirements.
Components
The concept of our machines and equipment is defined by both your product-dependent specifications and the focus on maximized standardization. In any other case we will gladly discuss with you your individual special solution. Here you may contact our Inside Sales Service.
Typical workpiece carrier weight: approx. up to 20kg
Workpiece carrier sizes: 80mm x 80mm to 320mm x 400mm
Cycle time: >2s
Control: SIMATIC S7
Optional control systems: Beckhoff, Bosch-Rexroth
Cell size: 1200mm x 1500mm to 2400mm x 2000mm
Modular system
Combination possibilities
Reusability
Flexible allocation of tasks between man and machine
Process modules offer more flexibility and optimize the equipment availability for product or process changes
Standardized mechanical and electrical interfaces allow a quick and easy conversion of the equipment
A strict separation of process, basic design and control allow a flexible adaptation to customer standards and different control concepts.
